iecho pk4

SMART CUTTING SYSTEM WITH AUTO FEEDING - Industrial grade speed up to 1000mm/s. Performs automatic sheet feeding, precision cutting, and collection. Ideal for short-run, on-demand production with minimal labor cost and maximum efficiency.

Contact Sales

1000mm/sIndustrial Speed

750mmMax Cutting Area

±0.1mmPrecision

Product Overview

The iecho pk4 Automatic Intelligent Cutting System features advanced automation with industrial grade cutting speed of 1000mm/s. Equipped with smart cutting system, auto feeding capabilities, and precision cutting technology, it offers maximum efficiency for professional applications. The system includes high frequency electronic oscillating knife, precision automatic positioning system, barcode management system, and automatic feeding system for streamlined production workflow.

Key Features

Advanced cutting technology meets professional performance

High Frequency Electronic Oscillating Knife

Notching main be more various and thicker, to meet different cutting requirements with superior precision and efficiency.

Precision Automatic Positioning System

Equipped with a high-definition CCD camera, it enables automatic, precise positioning and contour cutting—avoiding material alignment and print distortion for accurate, hassle-free cutting.

Barcode Management System

Scanning barcodes allows quick reading of cutting tasks, enabling streamlined workflow and efficient production management.

Automatic Feeding System

The fully automatic feeding system streamlines the entire production process by continuously and accurately feeding materials into the machine.

Technical Specifications

Cutting Specifications

Cutting Head Type:PK, PK Plus

Machine Type:PK0604, PK0705, PK0604 Plus, PK0705 Plus

Cutting Area (W×H):600mm×400mm, 750mm×530mm, 600mm×400mm, 750mm×530mm

Flooring Area (W×H):2350mm×900mm×1350mm, 2600mm×1000mm×1350mm, 2350mm×900mm×1150mm, 2600mm×1000mm×1350mm

Cutting Tool:Universal Cutting Tool, Creasing Wheel, Kiss Cut Tool

Cutting Material (PK):Car sticker, Sticker, Card Paper, PP Paper, reflective material

Cutting Material (PK Plus):KT Board, PP Paper, Foam Board, Sticker, Reflective Material, Card Board, Plastic Sheet, Corrugated Board, Grey Board, Corrugated Plastic, ABS Board, Magnetic Sticker

Cutting Tool (Plus):<6mm

Performance Specifications

Media:Vacuum System

Max Cutting Speed:1000mm/s

Data Format:PLT, DXF, HPGL, PDF, EPS

Cutting Accuracy:±0.1mm

Voltage:220V±10% 50Hz

Power:4Kw

Applications

Versatile cutting solutions for professional applications

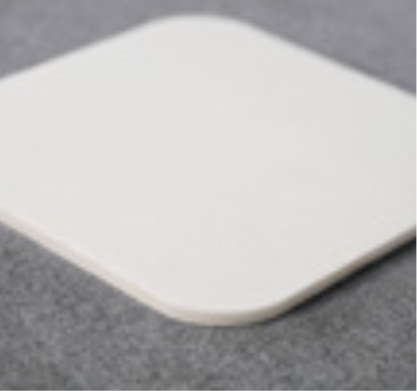

KT Board Processing

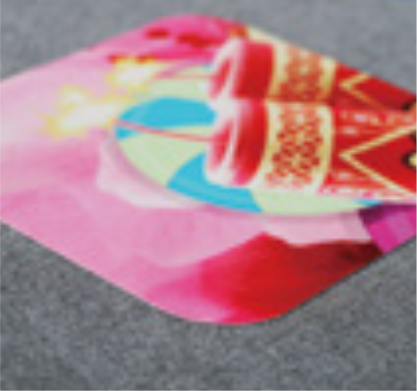

PP Paper Cutting

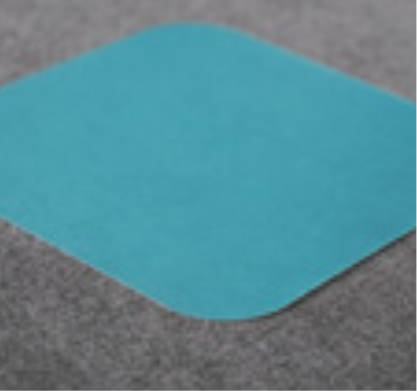

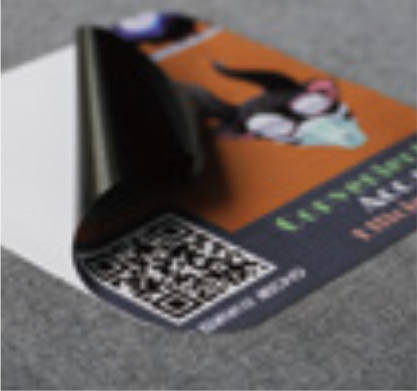

Sticker & Vinyl Applications

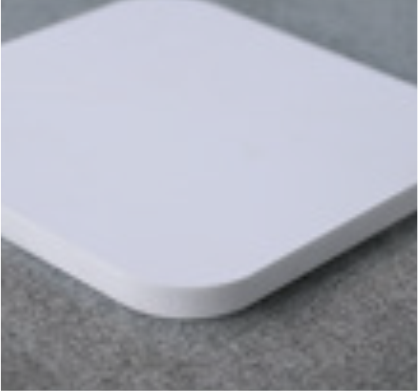

Foam Board Manufacturing

Plastic Sheet Processing

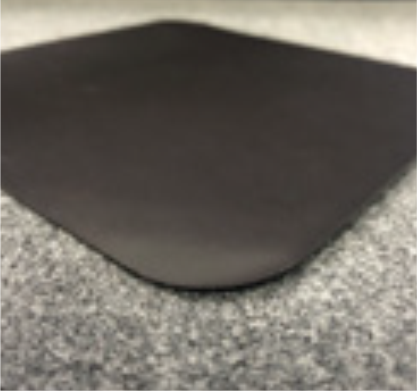

Magnetic Sticker Production

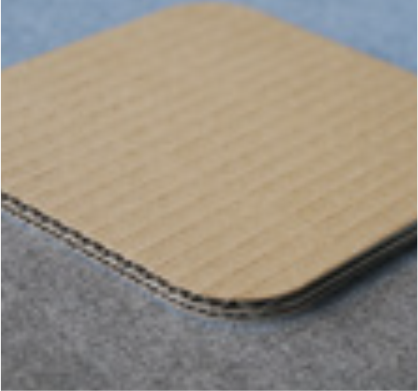

Corrugated Board Cutting

KT Board Processing

PP Paper Cutting

Sticker & Vinyl Applications

Foam Board Manufacturing

Plastic Sheet Processing

Magnetic Sticker Production

Corrugated Board Cutting

KT Board Processing

PP Paper Cutting

Sticker & Vinyl Applications

Foam Board Manufacturing

Plastic Sheet Processing

Magnetic Sticker Production

Corrugated Board Cutting

Why Choose iecho pk4?

Industrial grade speed up to 1000mm/s for maximum efficiency

Smart cutting system with auto feeding capabilities

High frequency electronic oscillating knife technology

Precision automatic positioning system with CCD camera

Barcode management system for streamlined workflow

Automatic feeding system for continuous operation

Multiple model options (PK0604, PK0705, Plus variants)

Vacuum system for secure material handling

Wide range of compatible materials and applications

Professional grade accuracy of ±0.1mm

Supports multiple data formats (PLT, DXF, HPGL, PDF, EPS)

Ideal for short-run, on-demand production with minimal labor cost
