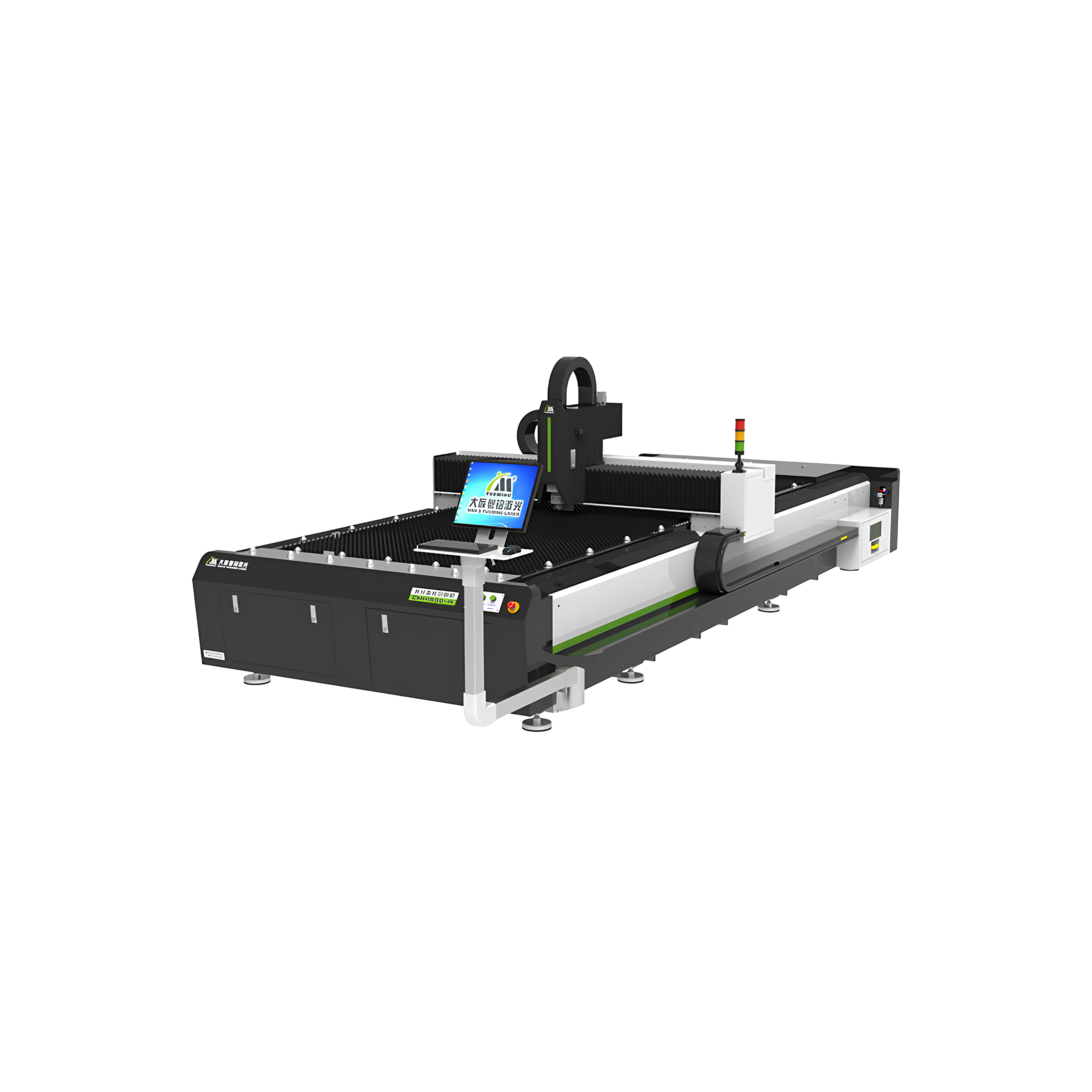

YueMing HL1530C-G-E Fiber Laser — Smart Leapfrog Motion for Faster & Smoother Cuts
Large-format industrial fiber laser cutting at up to 60 m/min, powered by 1000W–3000W IPG laser, double rack and pinion servo drive, and a parabolic leapfrog motion system that replaces slow rectangular traversal for dramatically faster contour switching.
- Parabolic leapfrog motion cuts idle travel time between contours dramatically
- Available in 1000W–3000W IPG fiber laser configurations
- Double rack and pinion servo drive delivers up to 60 m/min positioning speed
- Intelligent analysis dashboard enables real-time production monitoring
What Makes the HL1530C-G-E Stand Out?
The YueMing HL1530C-G-E is a large-format industrial fiber laser cutting machine built for high-throughput metal fabrication. With a massive 1500×3000mm working area, scalable laser power from 1000W up to 3000W, and cutting speeds up to 60 m/min, this machine is engineered for shops that need to process full standard metal sheets continuously and efficiently.
The defining innovation is the Smart Leapfrog Motion System — a parabolic "frog jump" traversal that replaces conventional rectangular tool-head movement. Instead of lifting the head straight up and then moving horizontally, the leapfrog system follows a smooth arc, using PLC to auto-adjust height for faster contour switching and improved cutting efficiency between pierce points.
Key Features
Core Part — Laser Head
The focus is controlled by the inner precision servo motor, no need for manual operation. Ensures consistent focal accuracy across the entire 1500×3000mm work area at full cutting speeds.
Intelligent Analysis
Includes power-off memory, fault alarms, auto shutdown, diagnostics, and timer functions — giving operators full visibility and control over every production run.
Machine Running Dashboard
Multiple platforms available — touch screen, PC, tablets, or mobile phones — so supervisors can monitor and manage machine status from anywhere on the production floor.
Leapfrog Motion
Parabolic "frog jump" motion boosts cutting speed with PLC-controlled height shifts — eliminating the slow rectangular traversal between cut segments for significantly higher parts-per-hour output.
Smart Leapfrog Motion: Why It Matters
In conventional fiber laser cutting, moving the head from one cut segment to the next requires raising the head vertically, repositioning horizontally, then lowering — three separate motion axes in sequence. The HL1530C-G-E's leapfrog system eliminates this inefficiency:
- Parabolic arc traversal — The PLC calculates the optimal arc height for each hop, blending vertical and horizontal motion simultaneously for faster travel between pierce points.
- 60 m/min cutting speed — Industrial-grade speed maintained throughout complex nested cut paths, not just on straight runs.
- Smoother contour switching — Reduced mechanical shock at direction changes means longer machine life and cleaner cut edges on complex profiles.
- PLC height auto-adjustment — The system intelligently selects the minimum arc height needed, avoiding excessive travel distance and keeping cycle times tight.
Full Specifications
| Product Model | HL1530C-G-E |
|---|---|
| Working Area | 1500mm × 3000mm |
| Laser Power (W) | 1000W – 3000W |
| Transmission System | Double Rack and Pinion and Servo Drive |
| Maximum Speed | 60 m/min |
| Positioning Accuracy | ±0.03mm / 1000mm |
| Repositioning Accuracy of Clamp | ±0.02mm / 1000mm |
| Format | LXO, DXF, PLT, AI, NC, etc. |
| Working Environment | 0–45°C, Humidity < 80%, Non-Condensing |
| Total Weight | 3000 kg |
| Overall Size | 5400mm × 2260mm × 2000mm |
| Power Supply | Three Phase 380V / 50Hz or 60Hz |
Application Areas
The HL1530C-G-E handles a wide range of industrial metal cutting and fabrication tasks on its large 1500×3000mm work surface:
- Sheet Metal Fabrication — Large enclosures, structural panels, frames, and industrial brackets cut from full standard sheets with minimal waste through optimized nesting.
- Reflective Metals — Copper, brass, and aluminum alloys processed reliably thanks to the IPG fiber laser source and controlled piercing sequence.
- Industrial Gears & Parts — Complex gear profiles, sprockets, and mechanical components from carbon and alloy steel with tight dimensional tolerances.
- Signage & Channel Letters — High-speed cutting of stainless steel, aluminum, and brass blanks for illuminated signs and large-format displays.
- Kitchen & Food Equipment — Stainless steel tables, sink cutouts, and food-grade equipment panels processed in high volumes.
- Automotive & Transport Parts — Body panels, mounting brackets, and structural components in aluminum alloy and high-strength steel.
Pros & Cons
Pros
- Smart leapfrog motion cuts traversal time between pierce points
- 60 m/min cutting speed — industrial-grade throughput
- 1000W–3000W scalable laser power for varied material thicknesses
- Double rack and pinion servo drive for high-speed accuracy
- ±0.03mm positioning accuracy at full production speed
- Large 1500×3000mm work area — processes full standard sheets
- Multi-platform dashboard (touch screen, PC, tablet, mobile)
- Intelligent fault alarms and power-off memory
Considerations
- Large footprint (5400×2260×2000mm) requires dedicated floor space
- 3000 kg — requires reinforced flooring and forklift for installation
- Three-phase 380V power supply required — industrial electrical setup needed
- Fiber laser is optimized for metals — not suitable for non-metal materials
Final Verdict
The YueMing HL1530C-G-E is a serious industrial fiber laser built for shops that need to move fast on large metal sheets. The smart leapfrog motion system is the headline innovation — replacing slow rectangular traversal with an efficient parabolic arc that keeps cycle times tight even on complex nested cut paths. Combined with 1000W–3000W scalable power, a double rack and pinion servo drive, and a multi-platform monitoring dashboard, this machine is ready for demanding production environments.
For Philippine fabrication shops, sign manufacturers, and industrial suppliers looking to step up to large-format fiber laser cutting, the HL1530C-G-E offers the work area, speed, and intelligence to handle full production shifts day after day.
Interested in the YueMing HL1530C-G-E Fiber Laser? Get a quote or schedule a live demo at our showroom.
